G2 Land Rig

G2 Land Rig

Rig Information — 20,000 ft

Rig NameG2
TypeLand Rig
Construction / Overhaul1981 / Overhauled 2019
Drilling Depth20,000 ft

Technical Specifications

DescriptionSpecification
Rig Name / TypeG2 / Land Rig
Year of Construction1981 / Overhauled 2019
Nominal Drilling Depth20,000 ft
DrawworksContinental Emsco C-2, 2000 HP
DerrickDRECO
SubstructureDRECO, Raising Winch, 25 ft Height
Top DriveNOV VARCO TDS-11SA, 500 Tons, 800 HP
Rotary TableContinental Emsco, 27-1/2 in
Mud PumpsContinental Emsco, 3 × FB-1600, 1600 HP each
Mud Tank Capacity2,200 bbls
Water Tank Capacity2,000 bbls
BOP System
  • 13-5/8 in × 5K Working Pressure, Annular Preventer
  • 13-5/8 in × 10K Working Pressure, Single & Double Ram Type Preventer
  • 21-1/4 in × 2K Working Pressure, Annular Preventer
  • Accumulator Unit, 3K Working Pressure, 200 Gal Capacity
Rig Power
  • 4 × CAT 3512 Diesel Engine, 1560 KVA each
  • 2 × CAT 3406 Main Camp Diesel Engine, 350 KVA
Power System
  • ROSSHILL-1400, AC-SCR-DC
  • Input: 600V / 1470 A (AC)
  • Output: 750V / 1800 A (DC), 60Hz

Rig Gallery

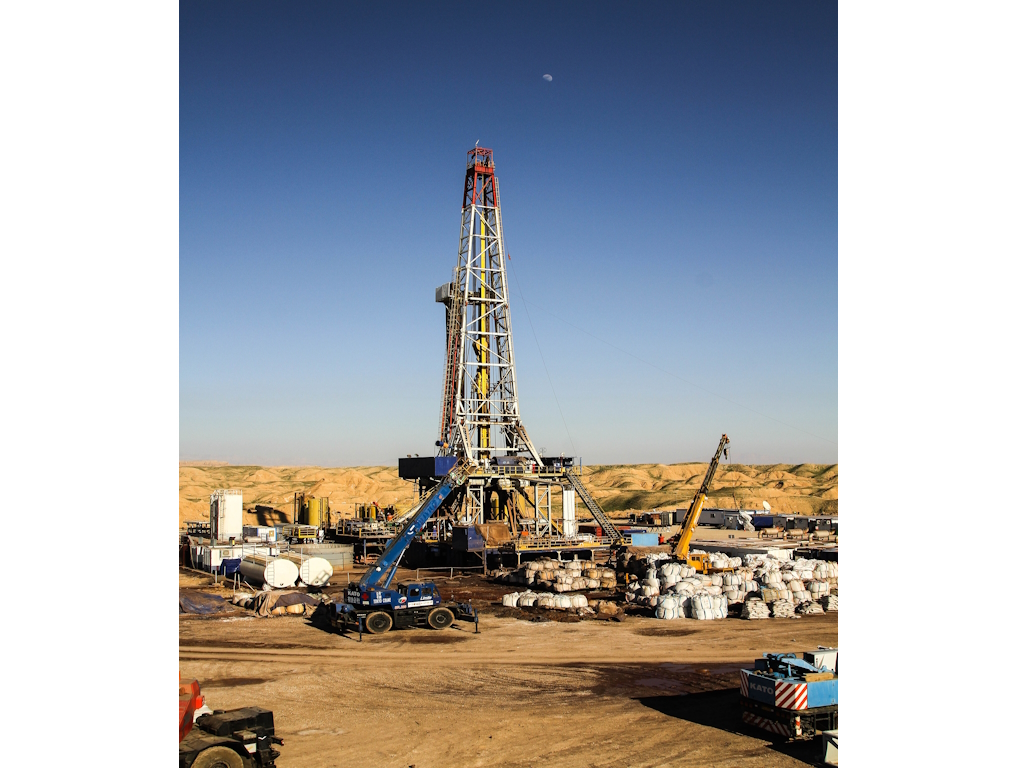

G2 Land Rig

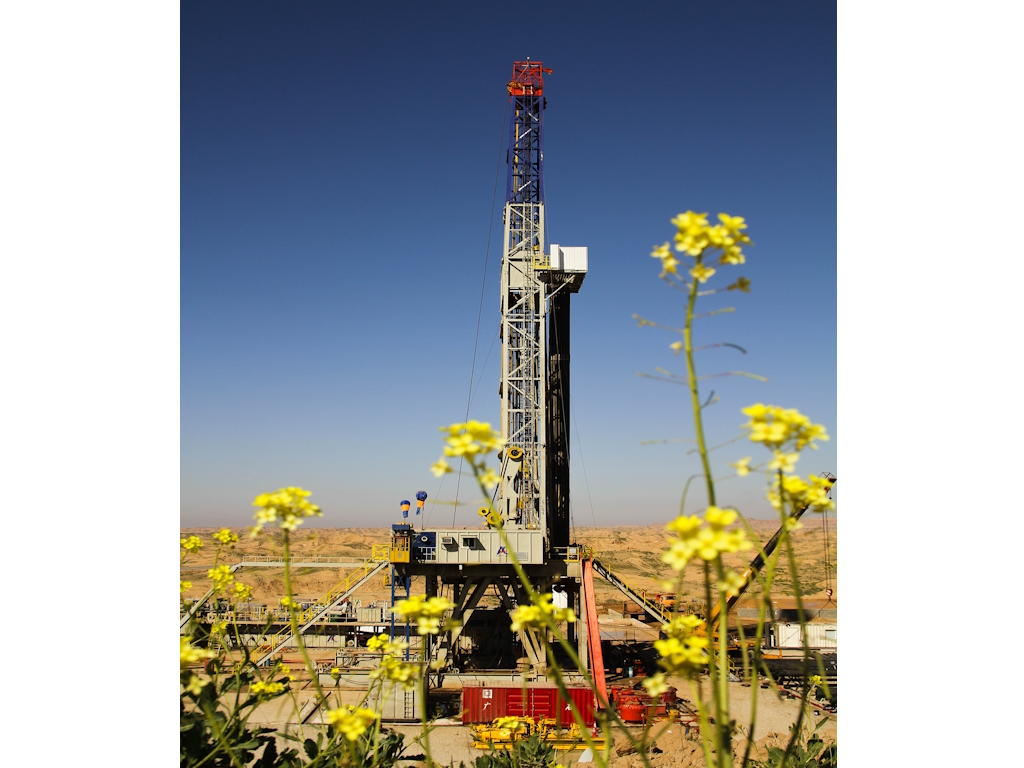

G2 Land Rig

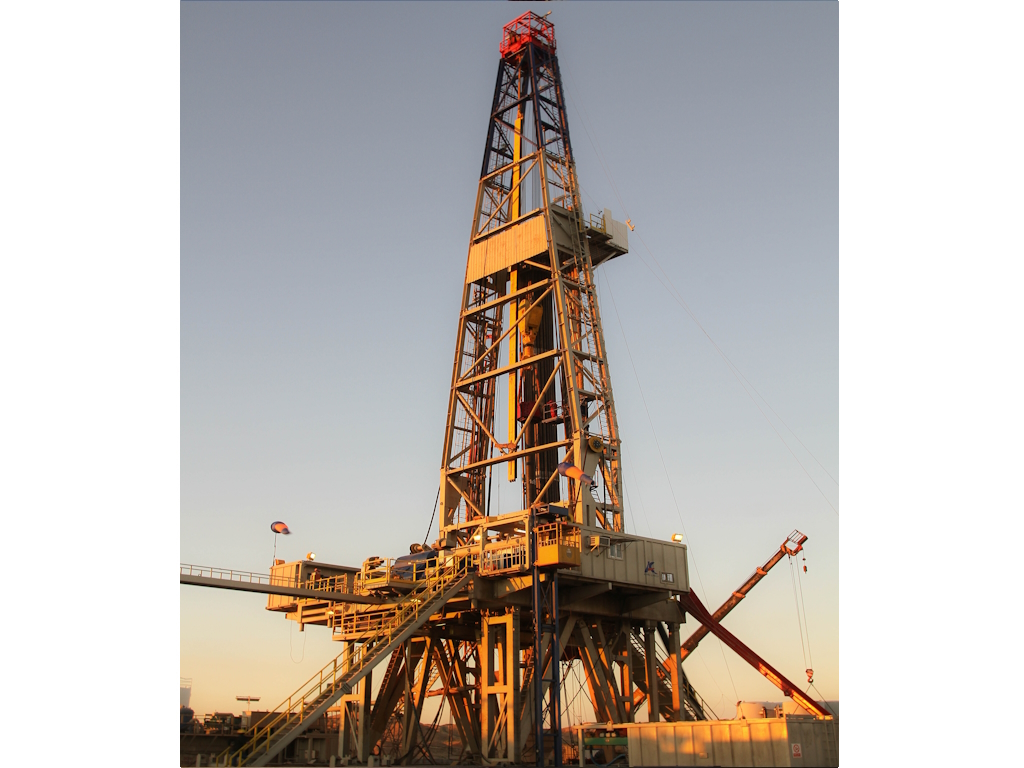

G2 Land Rig
