Rig Name: ORIENTAL 1

Rig Information

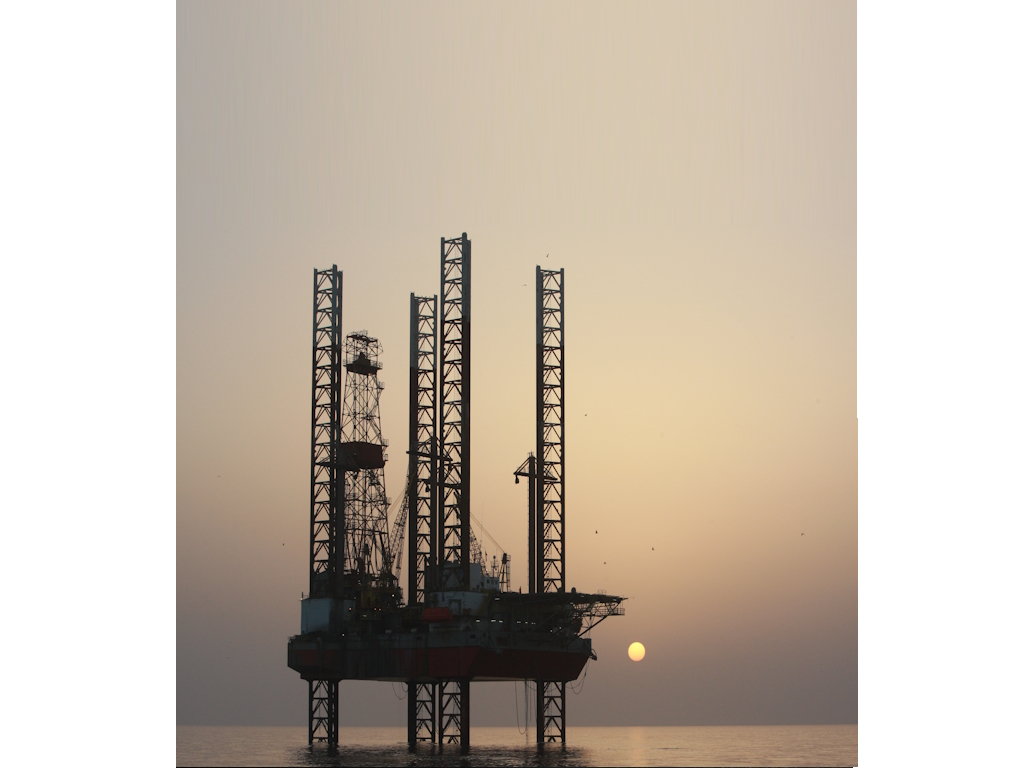

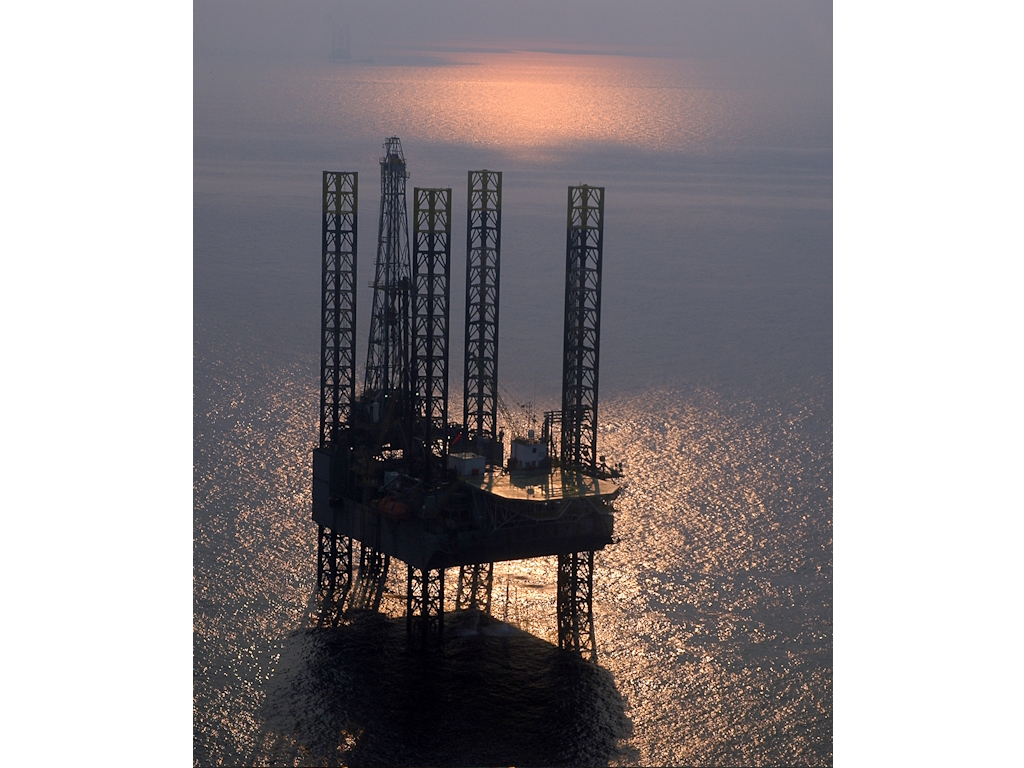

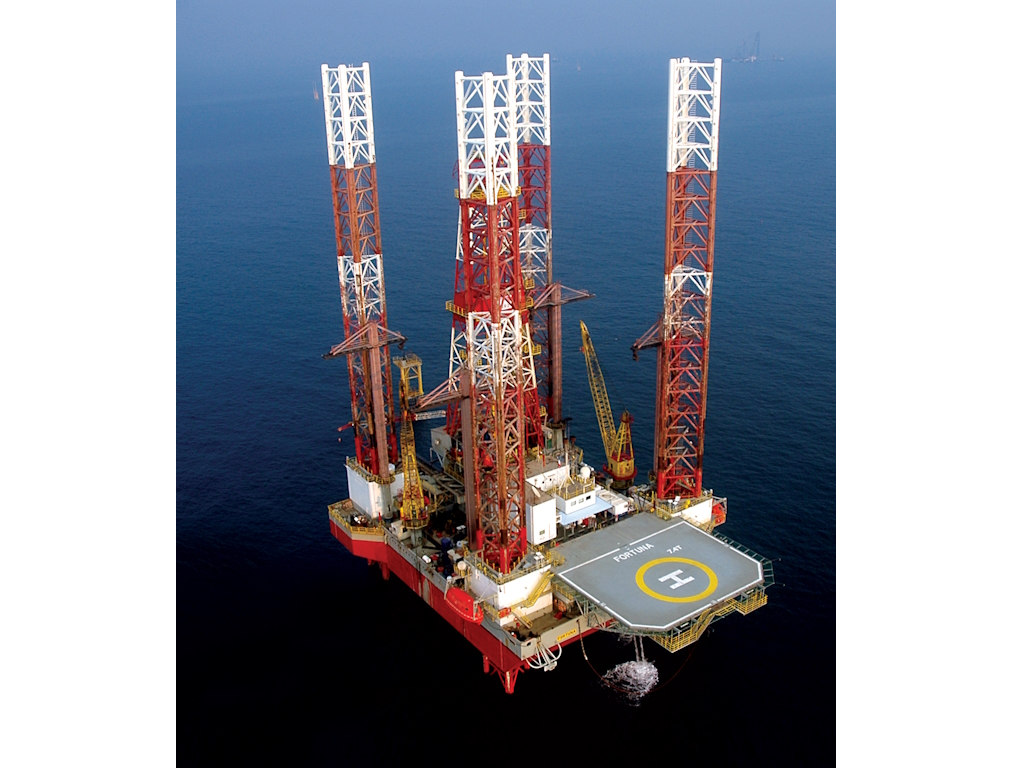

ORIENTAL 1 is a four-legged self-elevating cantilever jack-up drilling rig designed by Sonnat Offshore Company. Constructed in 1985, the rig is capable of operating in water depths up to 300 ft and drilling wells to a nominal depth of 20,000 ft.

Designed for offshore drilling operations, ORIENTAL 1 features a heavy-duty cantilever system, high-capacity mud circulation, powerful diesel generation units, and modern well control equipment to support demanding offshore projects.

RIG NAME ORIENTAL 1

TYPE Jack-Up Offshore Rig

CONSTRUCTION 1985

DRILLING DEPTH 20,000 ft

MAX WATER DEPTH 300 ft

LEG LENGTH 399 ft

VARIABLE LOAD 4,300,000 lbs

CANTILEVER 55' × 20'

Technical Specifications

Drilling Equipment

Draw Works: Upetrom TFM-38E, 2500 HP
Top Drive: VARCO TDS-11 SA, 500 Ton, 800 HP
Rotary Table: 37½" Upetrom

Structural Components

Derrick: Upetrom, 700,000 lbs
Substructure: Upetrom, 530 MT

Mud System

Mud Pumps: 2 × 1600 HP Gardner-Denver
Mud Tank: 2250 bbls
Water Tank: 3500 bbls

BOP System

13⅝" × 5000 psi W.P. Annular
13⅝" × 10000 psi W.P. Double & Single Ram
21¼" × 2000 psi Annular
20¾" × 3000 psi Single Ram (2 Nos.)
30" × 500 psi Diverter
CAD Type Koomey, 3000 psi, 242 Gal Capacity

Power System

CAT Engines: 4 × CAT 3512 (2940 HP Total)
I.C.M Resita: 3 × 12 LDSR 28F DC (6000 HP Total)
Volvo Penta: Model 163A (500 HP)
Volvo Penta: Model 102A (215 HP)
Cummins: KTA-5061 (1340 HP)

Accommodation

Maximum POB: 92 Beds
